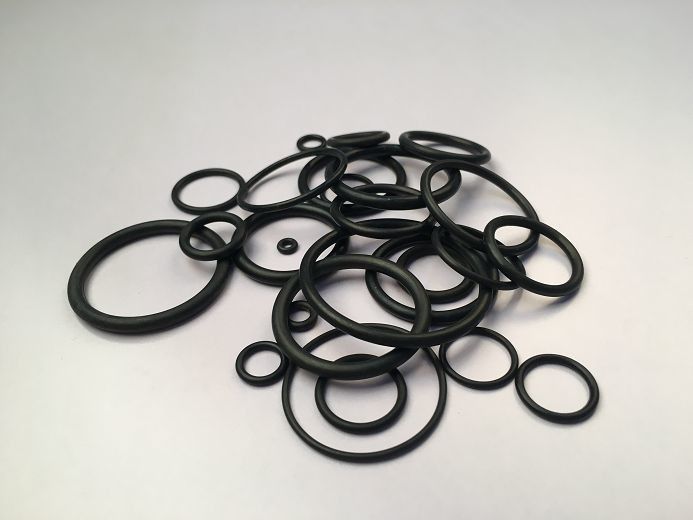

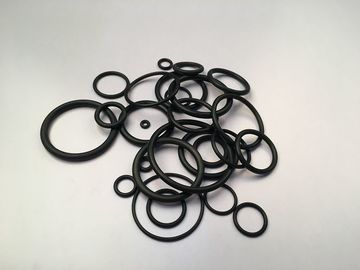

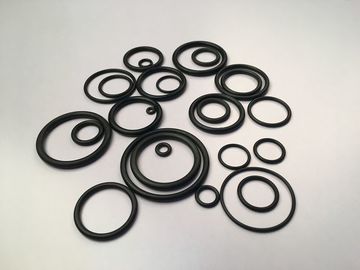

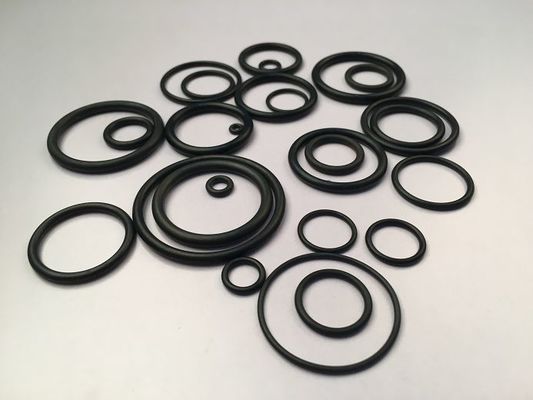

Black Color Large Rubber Ring Weather Resistant With Wide Pressure Range

Black Color Large Rubber Ring Weather Resistant With Wide Pressure Range

    • Black Color Large Rubber Ring Weather Resistant With Wide Pressure Range
    • Black Color Large Rubber Ring Weather Resistant With Wide Pressure Range
    • Black Color Large Rubber Ring Weather Resistant With Wide Pressure Range
    • Black Color Large Rubber Ring Weather Resistant With Wide Pressure Range
  • Black Color Large Rubber Ring Weather Resistant With Wide Pressure Range

    Product Details:

    Place of Origin: CHINA
    Brand Name: Robon
    Model Number: AS568

    Payment & Shipping Terms:

    Minimum Order Quantity: 30
    Price: 0.01-10
    Packaging Details: CARTON
    Delivery Time: 3-10DAYS
    Payment Terms: T/T
    Supply Ability: 500 000 Pcs/Day
    Contact Now
    Detailed Product Description
    Style: O Ring Material: Rubber
    Place Of Origin: Ningbo, China Color: Black
    Temperature: -40℃~220℃ Hardness: 40~85 Shore
    Feature: Low Temperature Resistance Standard: AS568 , P, G, S

    Various Size Black Color Rubber O Rings Sealing AS568 Standard



    • Static Seal - The sealing action created between two mating surfaces with no leakage of liquid or minimal diffusion of gas.


    • Dynamic Seal - The mating surfaces have relative movement with minimal leakage of liquid (useful to protect the sealing efficiency, acting as lubricant)



    The simple geometry is the main characteristic of an O-Ring which, in conjunction with proper elastomer selection results in a low cost, easy to use and efficient sealing system. Elastomeric materials, when compressed, react like a high viscosity fluid which transmits applied stress in every direction; consequently, the O-Ring serves as a barrier, blocking the leak paths between the sealing surfaces.



    O-Rings offer several advantages over other sealing systems: simplicity of construction, standardized seal dimensions, wide selection of materials, suitability for both static and dynamic applications, standard dimensioning of glands, low cost due to high volume manufacturing.



    Sealing is always achieved through a positive compression or squeezing action, resulting in a deformation of the O-Ring cross-section. The most important sealing characteristic of an O-Ring is its resistance to compression set or residual deformation.





    Black Color Large Rubber Ring Weather Resistant With Wide Pressure Range
