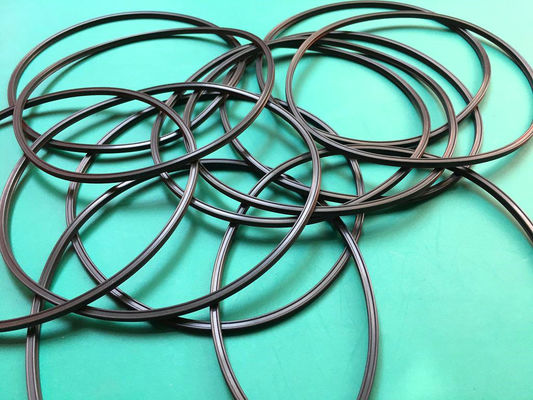

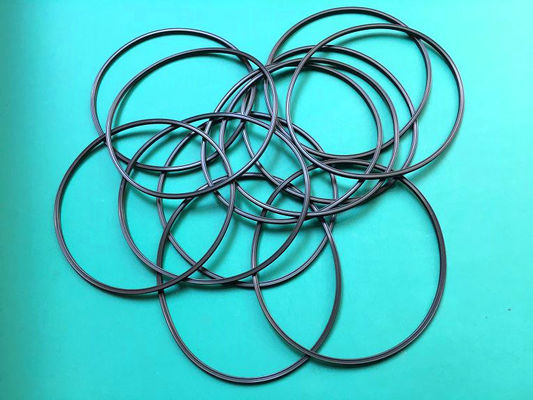

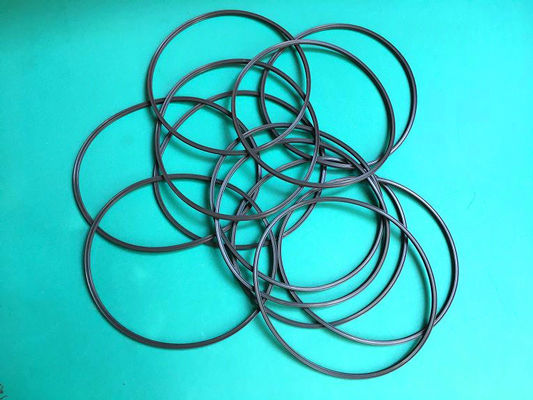

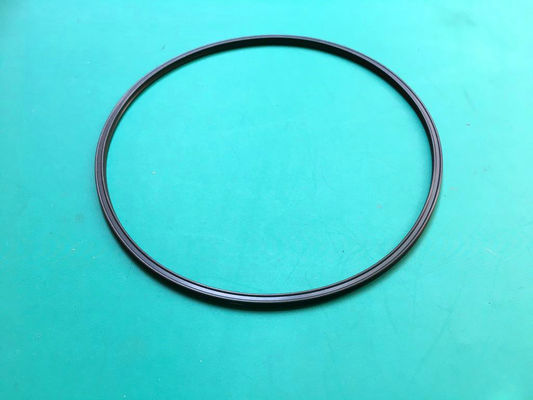

FKM X Ring Seal

FKM X Ring Seal
FKM X Ring Seal FKM X Ring Seal FKM X Ring Seal FKM X Ring Seal

Large Image :  FKM X Ring Seal

Product Details:
Place of Origin: CHINA
Brand Name: Robon
Model Number: AS568
Payment & Shipping Terms:
Minimum Order Quantity: 200 USD
Price: 0.01-10
Packaging Details: CARTON
Delivery Time: 3-10DAYS
Payment Terms: T/T
Supply Ability: 50 000 Pcs/Day
Detailed Product Description
Style: X Ring Material: Rubber
Place Of Origin: Ningbo, China Color: Black
Temperature: -20℃~200℃ Hardness: 50~85 Shore
Feature: High Temperature Resistance Function: Ozone Resistance
High Light:

FKM x ring seal


85 shore X Ring Seal


AS568 X Ring Seal

High Abrasion Resistance Black FKM O Ring For Cylindrical Surface Static Sealing


Fluorocarbon rubber has excellent resistance to high temperatures, ozone, oxygen, mineral oil, synthetic hydraulic fluids, fuels, aromatics and many organic solvents and chemicals. It has higher resistance to swell in high octane and oxygenated fuel blends.


1.Chemical Resistance
Mineral oil and grease, low swelling in ASTM oil No. 1, and IRM 902 and IRM 903 oilsPhosphate esters
Non-flammable hydraulic fuels in the group HFDEngine oils
Silicone oil and grease
Mineral/vegetable oil and grease
Aliphatic hydrocarbons (fuel, butane, propane, natural gas)
Aromatic hydrocarbons (benzene, toluene)
Chlorinated hydrocarbons (trichlorethylene and carbon tetrachloride)
Fuels, also fuels with methanol content


2.FKM O-Ring General Attributes

Excellent Heat resistance
Excellent resistance to oils
Low compression set
Good fuel resistance
Excellent ozone and weather resistance


3.Common Applications for FKM O-Rings

Engine Oil Seals
Fuel Systems
High Temperature Seals
Petrochemical Systems


4.Compound Info
ASTM D1418 Designation FKM
ASTM D2000/SAE J200 Type, Class HK
Hardness (Shore A) 55-90
Color customizable




Product Name O Ring
Material FKM(FKM/FPM)
Advantage 1. Excellent High Temperature Resistance
2. Excellent Abrasion-Resistance
3. Excellent Oil Resistance
4. Excellent Weathering Resistance
5. Excellent Ozone Resistance
6. Good Water Resistance
Disadvantage 1. Poor Low Temperature Resistance
2. Poor Water Vapor Resistance
Hardness 50~85 shore
Temperature -20℃~200℃
Samples Free samples are available when we have inventory.
Payment T/T, Paypal, Western Union
Application 1. For Auto
2. For Aerospace
3. For Electronic Products
