Wide Pressure Range Oil Resistant O Rings Efficiently Blocking Seal Surface Leak Path

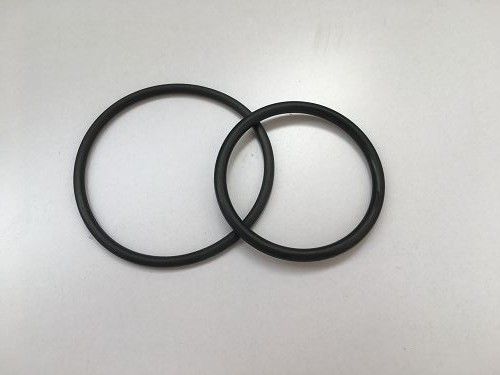

CR Chemical Resistance Neoprene O Ring with Wide Pressure Range

Neoprene was the first synthetic rubber developed commercially and exhibits generally good ozone, aging and chemical resistance. It has good mechanical properties over a wide temperature range. Improved ozone, weathering and aging resistance compared with nitrile rubber.

Both o-rings and gaskets can be made from Neoprene materials.

Names: Chloroprene, CR, Neoprene

Compound Info
ASTM D1418 Designation CR
ASTM D2000/SAE J200 Type, Class BC, BE
Hardness (Shore A) 40-90
Color black

Thermal Properties
Min Temp. -40°F (-40°C)
Max Temp. 250°F (121°C)

Chemical Resistance

Paraffin base mineral oil with low DPI, e.g. ASTM oil No.1
Silicone oil and grease
Water and water solvents at low temp.
Refrigerants
Ammonia
Carbon dioxide

Limited Compatibility

Naphthalene based mineral oil (IRM 902 and IRM 903 oils)
Low molecule aliphatic hydrocarbons (propane, butane, fuel)
Glycol based brake fluids

NOT compatible

Aromatic hydrocarbons (benzene)
Chlorinated hydrocarbons (trichloroethylene)
Polar solvents (ketones, esters, ethers, acetones)

Professional production of precision o-rings, o-ring, rubber ring, rubber balls, FKM o-ring,silicone balls, water rings, water seals, rubber seals, o-rubber ring, o ring seals, rubber products, seals, hollow rubber ball, plastic beads, fluorine rubber o-rings, waterproof rubber rings, silicone waterproof ring, hollow plastic ball, solid rubber balls, hollow plastic balls, hollow PTFE o-ring, ptfe o-ring, o-ring, o ring, FKM seals, polyurethane seals rings, rubber tubes, silicone tubes, fluorine rubber sheet. Products for the automotive, valves, ball valves, pumps, sanitary, electronics, bearings, electrical appliances, toys and other industries, exports to Europe, America.

Types of materials are NBR nitrile rubber, NR natural rubber,CR Neoprene, EPDM EPDM,HNBR hydrogenated nitrile rubber,SILICOME silicone,FKM,FKM, fluorine rubber, FLS silicon fluorine rubber, PU Polyurethane,SBR D benzene rubber, Buna Nitrile rubber,PTFE, Certification with ROHS, U.S. NSF, FDA, German DVG, KTW, British WRAS.

1). Products in stock, delivery time is 1-2 workday;
2). Products out of stock, and mold in stock, delivery time is 5~7 workdays;
3). Products out of stock, and mold out of stock, delivery time is 10~15 workdays.

Remark: Delivery time is also subject to quantity.
